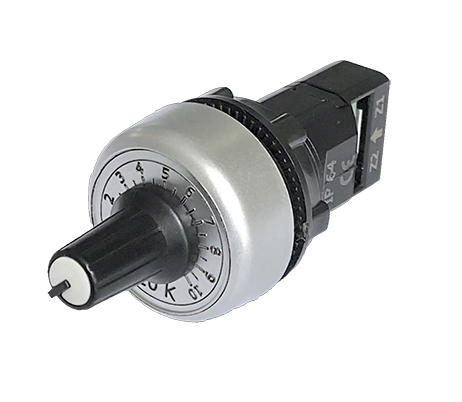

10K 22mm Plastic Potentiometer

The WL9 PT 10K is a single-turn potentiometer designed for manual adjustment in electrical and control systems. Its standard 22 mm form factor allows for easy integration into control panels, making it ideal for industrial and automation applications.
Made of durable plastic with a high degree of protection, this device guarantees longevity and reliability even in demanding environments. Its design allows for precise and stable adjustment of electrical parameters, facilitating manual control in various processes.
Thanks to its panel mounting and screw terminal connection, the WL9 PT 10K offers quick, safe installation and is compatible with multiple configurations.

Technical specifications

• Type: Potentiometer
• Resistance: 10,000 Ω (10 kΩ)
• Material: Plastic
• Protection rating: IP65

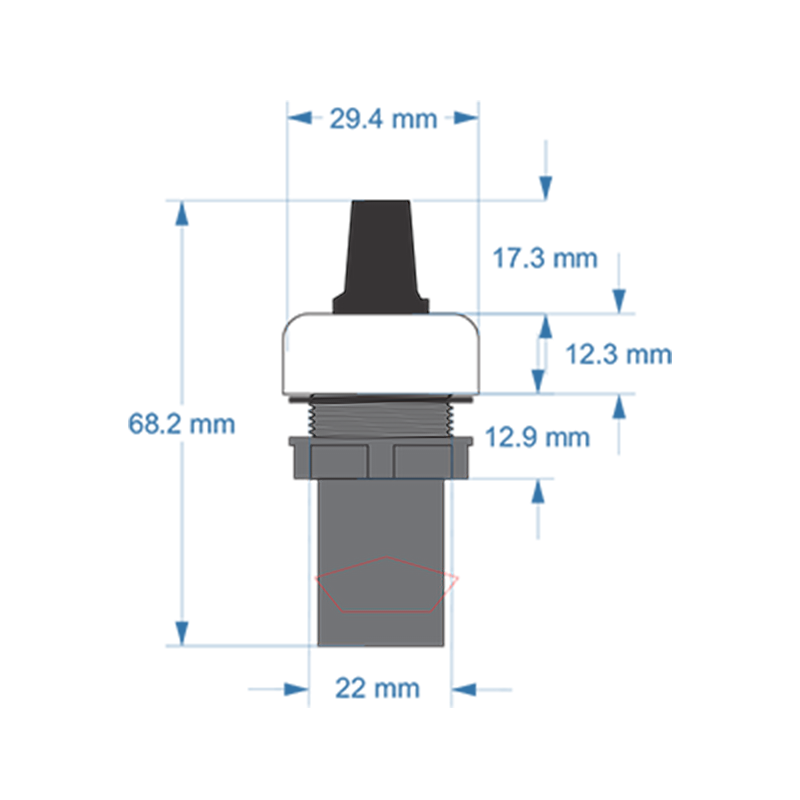

• Mounting: Panel (hole Ø 22 mm)
• Connection type: Screw
• Maximum cable cross-section: up to 2.5 mm²

Applications

• Control panels
• Speed or intensity adjustment
• Automation systems
• Regulation of electrical parameters
• Industrial machinery

The WL9 PT 10K is a practical and reliable solution for the manual adjustment of variables in electrical systems, combining precision, durability and ease of installation.
