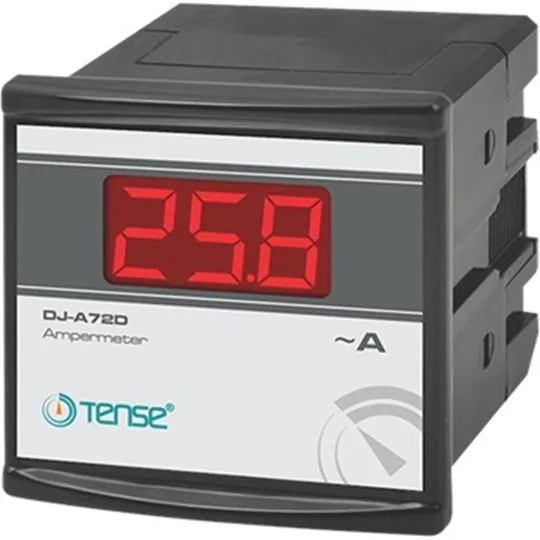

72x72 mm digital ammeter (100 A direct)

The DJ-A72D is a digital panel ammeter designed for the accurate measurement of alternating current (AC) in electrical systems. This device is ideal for industrial and automation applications where reliable, real-time monitoring of electrical consumption is required.
Thanks to its robust design and 72 x 72 mm format, the DJ-A72D is easily integrated into electrical panels via front mounting, offering a clear and precise display of the measured values through its digital screen.
This model allows current measurement using included external transformers, with a configurable range from 1A to 100A , ensuring flexibility in different usage environments. Furthermore, it boasts a high accuracy of ±1% , guaranteeing reliable readings at all times.
The device operates on a 150V to 270V AC power supply at 50/60 Hz , making it suitable for standard installations. Its low power consumption (<4VA) makes it an efficient choice for continuous monitoring systems.
Its most notable technical features include:

• High visibility digital display (20 mm)
• Simple setup via menu
• Connection via plug-in terminals
• Operating temperature from -20°C to +55°C
• Front panel mounting
• Lightweight (max. 220 g)

Regarding its installation, the DJ-A72D requires the correct connection of the current transformer before the load to be measured, thus ensuring an accurate reading.
To ensure safe and long-lasting use, it is recommended to avoid humid environments, use a nearby switch or circuit breaker, and perform maintenance with gentle cleaning without harsh chemicals.
The DJ-A72D is an efficient, accurate and easy-to-install solution for current monitoring in electrical systems, offering reliability and performance in demanding applications.
